BX-PLUS-AGS-ZKIT

CAME actuator for leaf gates set, max 400kg,

Mark: Came, Max. wing length: 4m, Module of the gear comb: mod 4, Recommended weight of the wing: 200kg, Frequency (MHz): 433, Code type: Multi (fix/rolling), Drive slowdown: Drive decelerate before endpoint, Motor power supply: AC 230V, Performance: 560W, Force: 600N, Speed: 10,5 m/min, Power supply: AC 230V, Controller: ZBX7N, Master/Slave: Yes, Capacitor: 12uF, Protection level: IP44, Encoder: Yes

1.249,29 zł
without VAT
1.536,63 zł
with VAT


PCS
Stock availability
SK Krompachy > 25
PL Ruda Śląska 0

Contact

For more information about the product, you can contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Parameters

Mark
Information about producer of product
Came
Max. wing length
Maximum wing length for the given drive
4m
Module of the gear comb
Určuje kompatibilitu hrebeňa s pastorkom motora.
mod 4
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
200kg
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
Code type
Typ kódu pre správnu kombináciu ovládača s elektronikou.
Multi (fix/rolling)
Drive slowdown
Information about the drive slowing down before the end position.
Drive decelerate before endpoint
Motor power supply
Type and value of the motor supply voltage
AC 230V
Performance
560W
Force
600N
Speed
Parameter of the drive feed speed
10,5 m/min
Power supply
Type and value of the power supply voltage
AC 230V
Controller
ZBX7N
Master/Slave
Yes
Protection level
IP44
Encoder
Yes
Capacitor
12uF

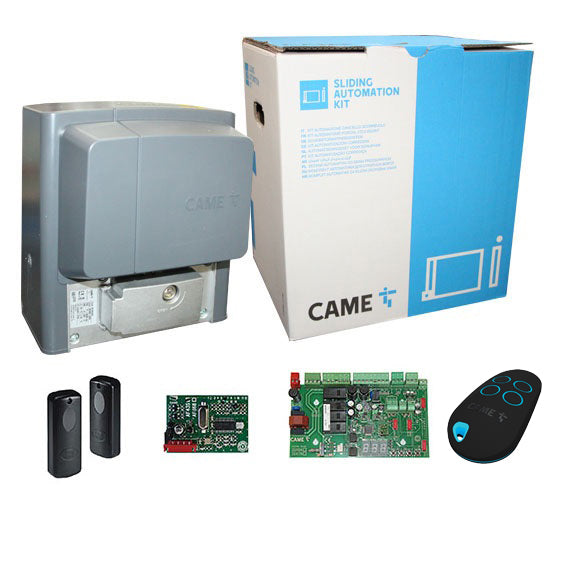

Parts of set

Radio card 433,9 MHz AF-43-S

1 pcs
Mark
Came

Remote controller CAME TOP roling code, 4CH, CAME TOP44RBN

1 pcs
Mark
Came
Frequency (MHz)
433
Code type
Rolling

Photocell for plaster montage max. 10m DIR-10

1 pcs
Mark
Came
Power supply
12-24V AC
Protection level
IP54
