A14/2008-042

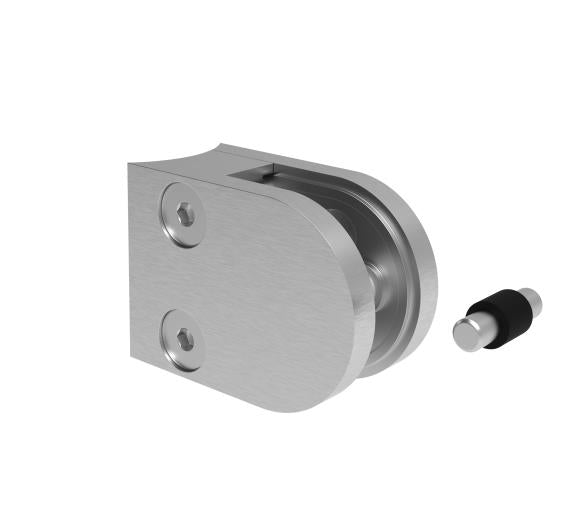

Glass clamp

Material: Stainless steel AISI 316, Surface finish: Satined, Glass t: 8, Post: D42,4, Model: Model 20, Phi: 42,4

14,34 zł
without VAT
17,64 zł
with VAT
PCS
Stock availability
SK Krompachy > 25
PL Ruda Śląska 0

Contact

For more information about the product, you can contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products Sets

Description

The glass holder also includes 2 pieces of gasket A19/20-008 for glass T=8mm

Parameters

Uchwyt szkła
Material
Defines the material from which the product is made.
Stainless steel AISI 316
Surface finish
Surface finish of product
Satined
Glass t
Determines the thickness of the glass in mm the product is suitable for
8
Post
Determines use based on the size and shape of the post
D42,4
Model
Model 20
Phi
42,4

Download

PDF

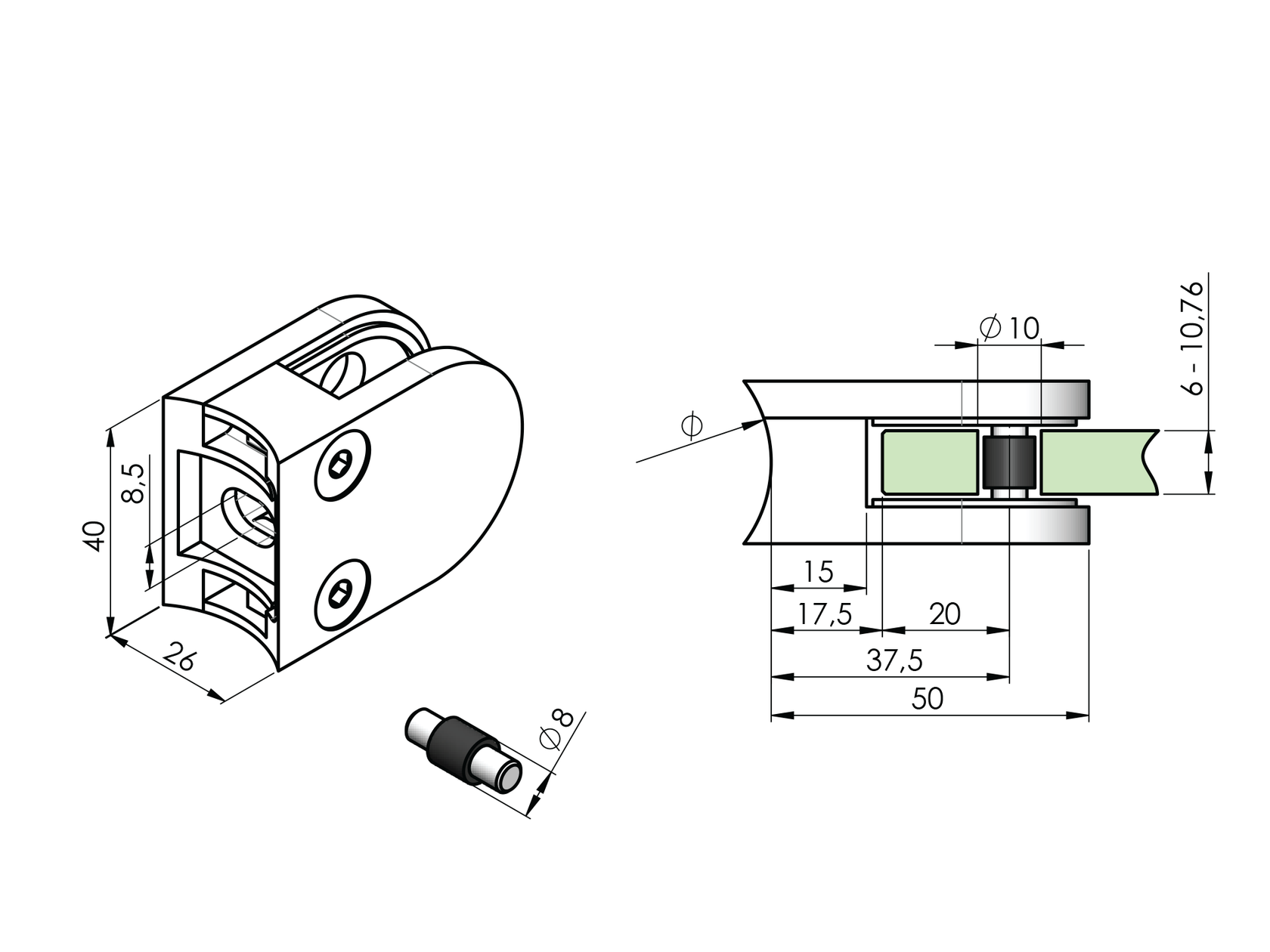

Parametric drawing
JPG
Instalation manual

Catalog list

Uchwyt szkła
umakov-pl

Glass clamp

14,34 zł
The glass holder also includes 2 pieces of gasket A19/20-008 for glass T=8mm
